5499910-2
Manufacturer:
TE Connectivity
Mfr.Part #:
5499910-2
Datasheet:
Description:

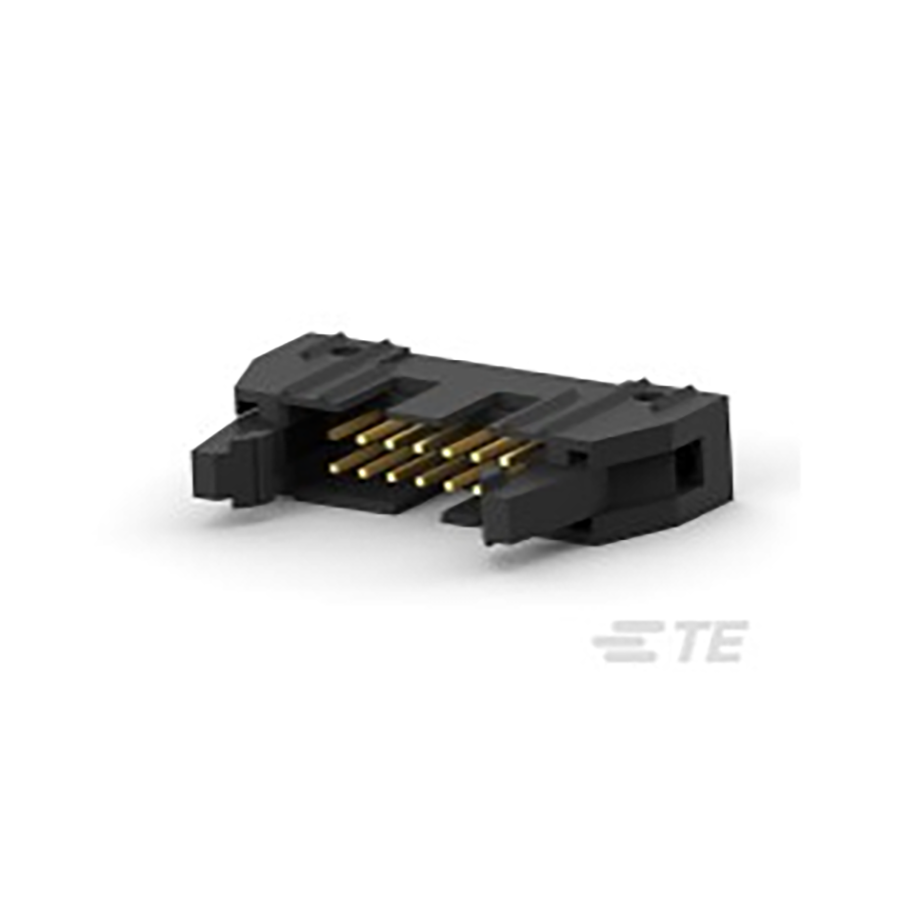

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:14 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 37.084 mm |
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 13.94 mm |
| Packaging | Tray |
| Depth | 8.53 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Lead Length | 2.79 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 14 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 250 V |
| Contact Current Rating | 1 A |
| Housing Color | Black |
| Contact Mating Length | 6.096 mm |
| PCB Thickness | 1.57 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Contact Shape | Square |
| Shrouded End Dimension | 3.81 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Mating Connector Lock | With |
| Termination Post Length | 2.79 mm |
Stock: 49
Distributors
pcbx
pcbxUnit Price$3.12490
Ext.Price$3.12490
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.12490 | $3.12490 |
| 10 | $2.71786 | $27.17860 |
| 25 | $2.54312 | $63.57800 |
| 50 | $2.37962 | $118.98100 |
| 100 | $2.22663 | $222.66300 |
| 300 | $2.08347 | $625.04100 |
| 500 | $1.94952 | $974.76000 |
| 1000 | $1.82418 | $1824.18000 |
